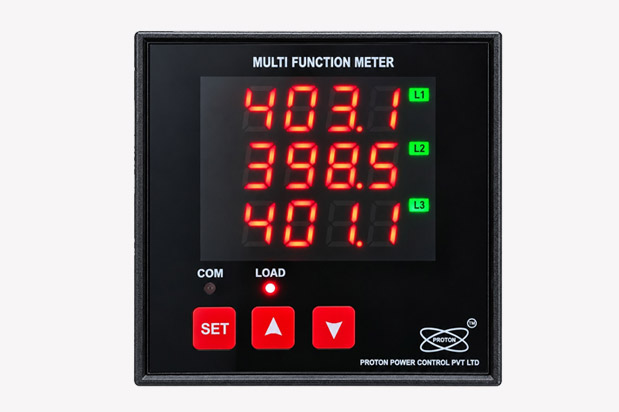

We are one of the trustworthy names in offering range of Digital Multifunction Meter to our respected clients. Our offered products Digital Multifunction Meter is widely demanded for its portability, efficient performance and less power consumption.
- DISPLAY 3 Row of 4 Digits
- WIRING INPUT 3 Ø - 4 wire,
- AUXILIARY SUPPLY 90V-300VAC/DC
7 Segment LED Display
Digit Integrated with parameter Units
1 Ø - 2 wire
- Active Energy Class 0.2S as per IEC 62053-22
- Apparent Energy Class 1
- ReactiveEnergy Class 2 IEC 62053-23
- Active Power of nominal value
- Reactive Power" of nominal value
- Apparent Power ±0.2% of nominal value
- Voltage ±0.2% of nominal value
- Current ±0.2% of nominal value
- Frequency THD (Voltage / Current) +3.00/0
- Power Factor/Phase Angle ±3.00
- True RMS measurements
- Simultaneous sampling of voltage and current.
- STAR and 1 PHASE Programmable wiring connections.
- Universal Auxiliary supply 90 - 300V AC/DC.
- Auto Scaling of Decimal point and Auto scrolling.
- Programmable CT & PT Ratio.
- User programmable password protection.
- Energy Import and Export available.
- Individual Phase energy throu commumcation.
- Demand measure Var.
- Idividual phase angle measurement.
- THD+N measurement.
