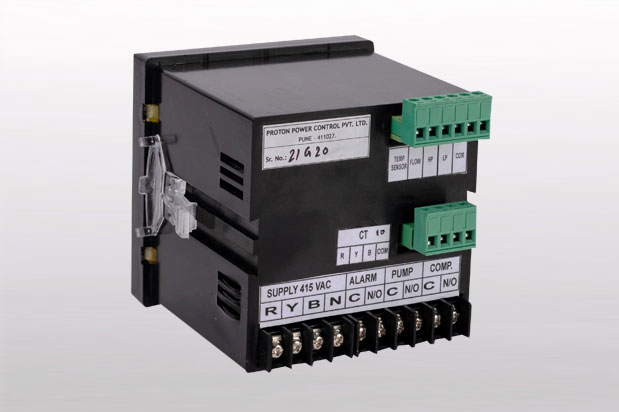

- Supply Voltage: 3 Phase 415 V, 50 HZ AC (3Phase 3 wire)
- Output Contact Rating:30A,250V for Compressor.
- 7Amps,at 250 VAC for FAN1/FAN2.
- Front Panel:
- 1) 4 seven Segment bright LED Display.
- 2) 3 Keys for settings.
- 3) Fault indication by Red LED.
- 4) Pump and Compressor Status by Green LED
- Sensing:
- 1) Temperature, HP, LP and Flow for compressor.
- 2) Current, Voltage & temp sensing.
- Working:
- 1.Under normal working condition at power on after setteble ON delay Pump & Compressor will ON.
- 2.While compressor is ON,if HP,LP,Flow Fault occurs then Cmpressor will be OFF.
- 3.IF UV /OV,UL/OL occurs then Both Pump and compressor will be OFF.
- 4.If unit in Chiller mode then If temp.goes above setpoint compressor will ON & vice versa. If unit in a Heat Pump mode then If temp.goes below setpoint compressor will ON & vice versa.
