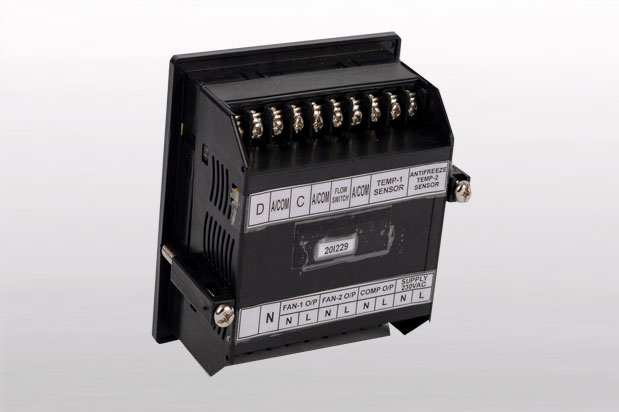

- Supply Voltage:230 VAC ± 15 %.
- Output Contact Rating:30A,250V for Compressor.
- 7Amps,at 250 VAC for FAN1/FAN2.
- Front Panel:
- 1) 3 seven Segment bright LED Display
- 2) 3 Keys for settings.
- 3) Fault indication by Red LED.
- 4) Compressor, FAN1/2 Green LED.
- Sensing:
- 1) Temperature, Antifreeze Temp. HP, LP for compressor.
- 2) Current & Voltage sensing.
- Working:
- 1.Under normal working condition at power on after delay of 1 min(setteble).FAN1 will ON,after 2 mins(setteble).FAN2 ON,after 3 min(setteble) delay Compressor will ON.
- 2.While compressor is ON,if HP,LP,OL occurs then Cmpressor and FAN2 will be OFF.
- 3.IF UV /OV occurs then Both FANs and compressor will be OFF.
- Faults/Protections:
- 1) Over Load.
- 2) Under Voltage.
- 3) Over Voltage.
- 4) HP/LP/Flow low
- Key Functions:
- 1. Ent: For menu selection to scroll through menus/to save the set point/to come out of set mode.
- 2. Inc: This key is used to increment the value of parameters.
- 3. Dec: This key is used to increment the value
