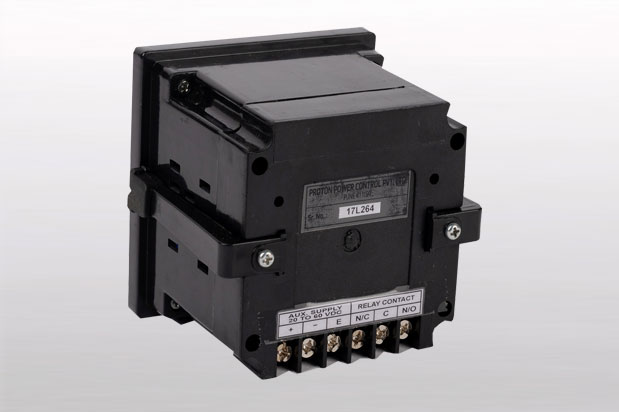

- Supply voltage : 20-60VDC.
- Output Contacts : One SPDT (C-N/O-N/C) Relay, Rating 5A at 250V AC
- Indications : FAULT (UV): RED LED, RELAY ON:Green LED.
- Keys:
- SET : SET key, Press to enter into SET Mode
- INC : Upward Arrow key, Press to increment the setpoint.
- DEC : Downward Arrow key, To Decrement the setpoint.
- Mounting : Door Mounting.
- Dimensions : 96(L) * 96(W) * 110(D), mm.
- Working :
1] If the Input supply is within the range of the fault limits then On Timer starts decrementing on display & after Set On Time over Relay will be ON with RL indication glowing.
2] If UV occurs in the supply then Relay will be OFF.If that particular fault is removed then ON Timer starts decrementing on display & after Set On & RL indication glowing.
- Microcontroller based technology.
- Protection against under voltage, Over voltage.
- All the set points settable by keys.
- Trip Delay is settable
- Indications for Under voltage, Over Voltage, Relay.
- Message Display for under voltage, Over Voltage.
