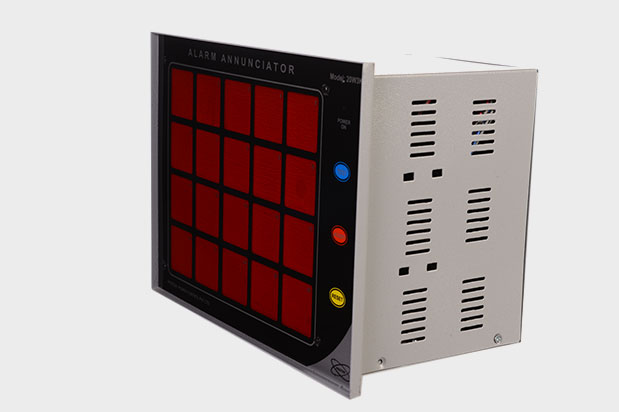

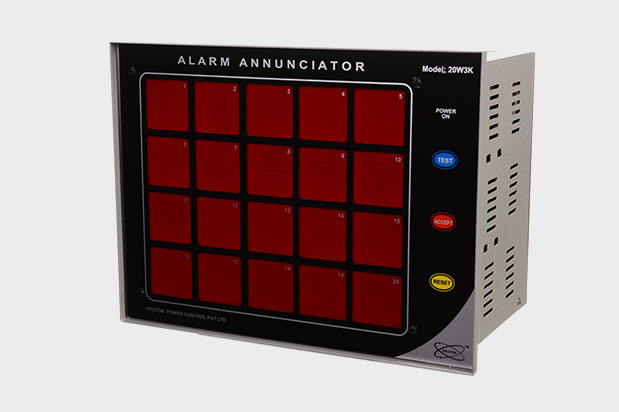

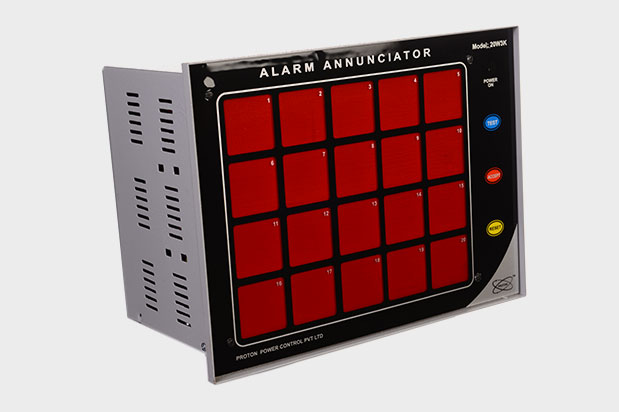

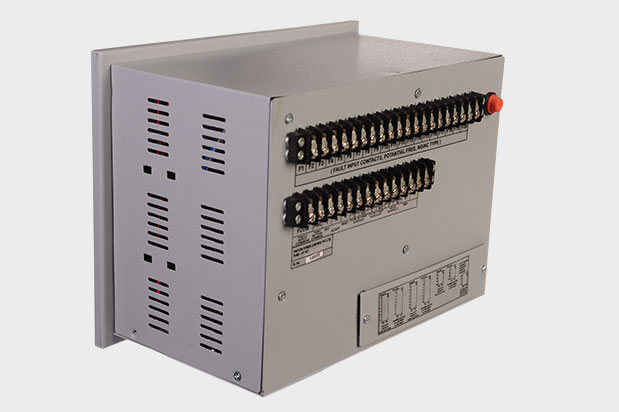

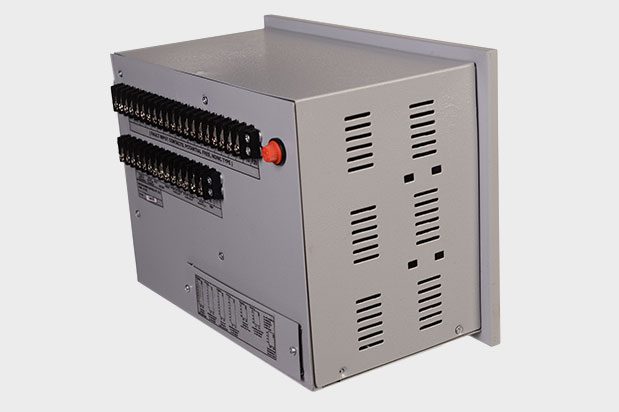

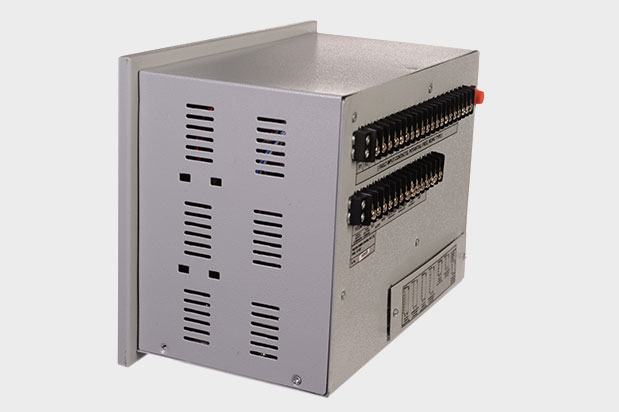

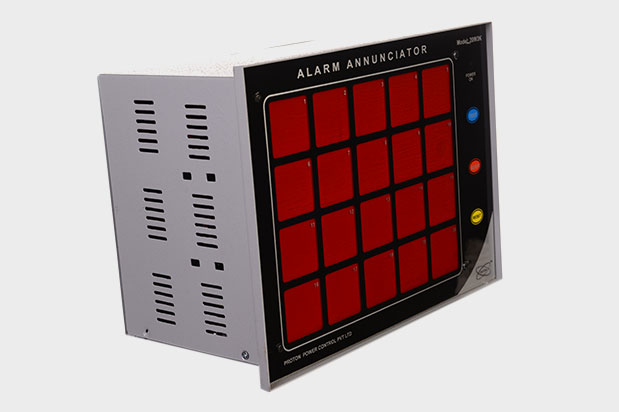

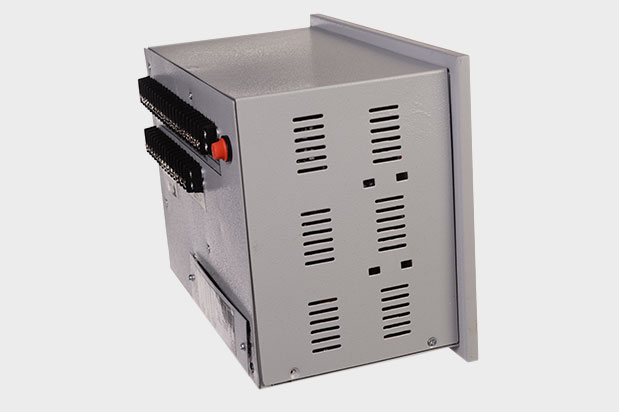

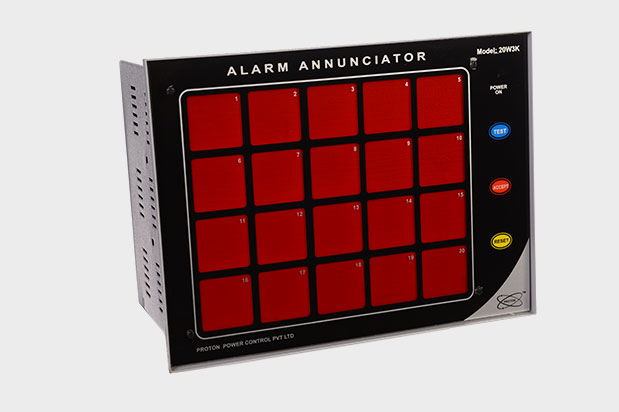

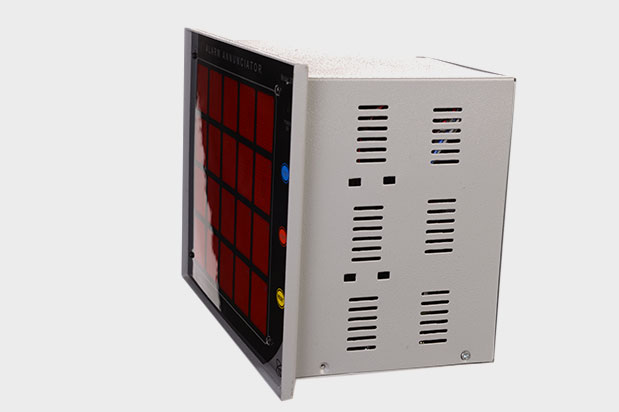

20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
20 Window Alarm Annunciator
  • Supply Voltage :
    1) 90-270 AC/DC SMPS OR
    2) 20V/60V DC Optional
    3) Dual power supply 110V DC and 230V AC
    4) Dual power supply 24V DC and 230V AC
  • Operation Sequence: Multiple sequence option with site selection facility.
  • Push Button Controls: On board Test, Silence(optional),Accept, Reset buttons.

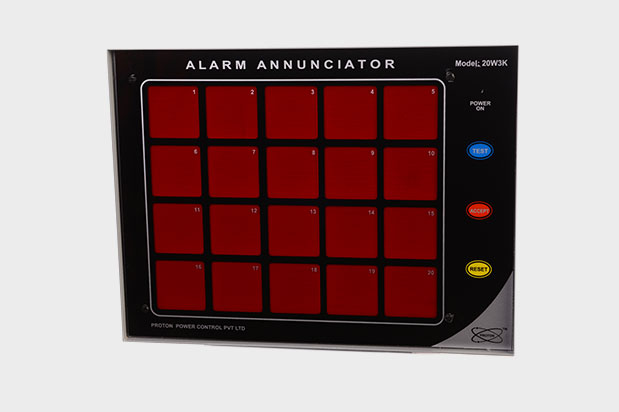

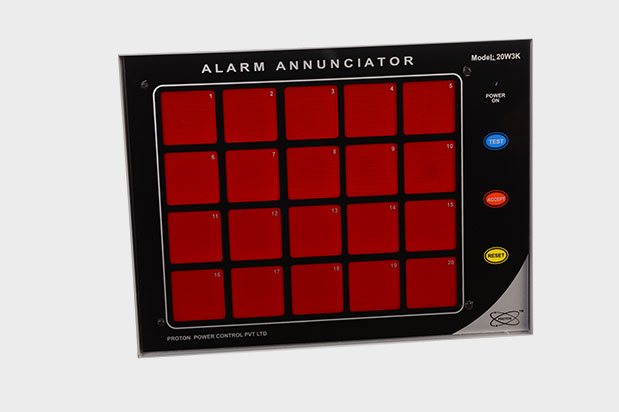

  • No. of windows: 20 Window (4R x 5C).
  • Window size: 40 x 40 mm.
  • No of LED`s per Window: Super bright 4 LED`s in Parallel.
  • Power Consumption: 0.8 VA per window.

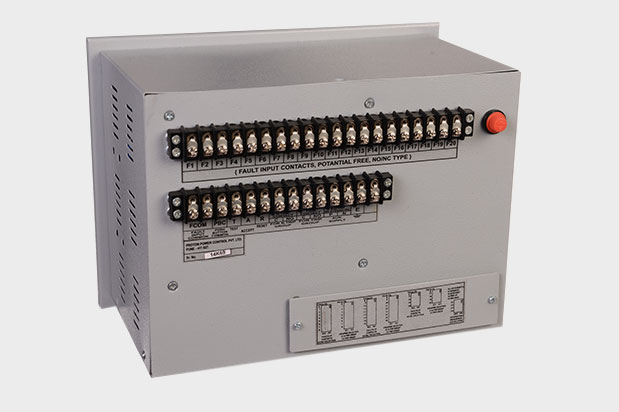

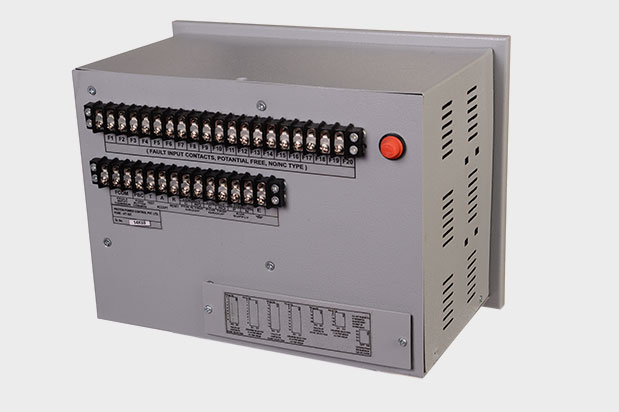

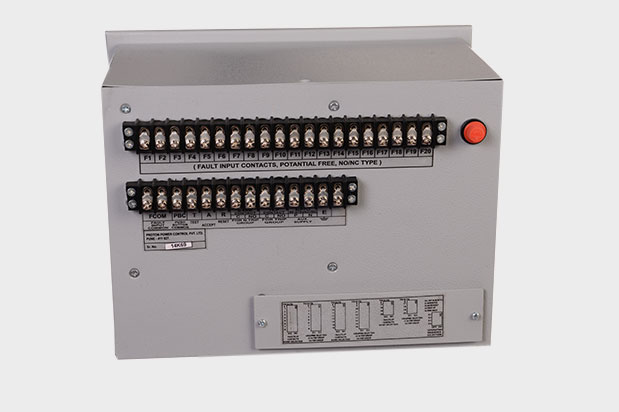

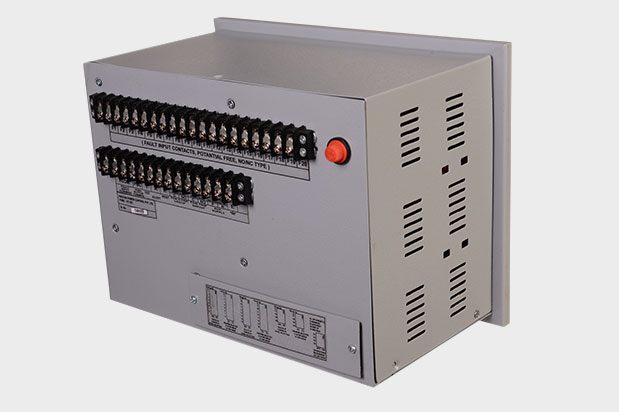

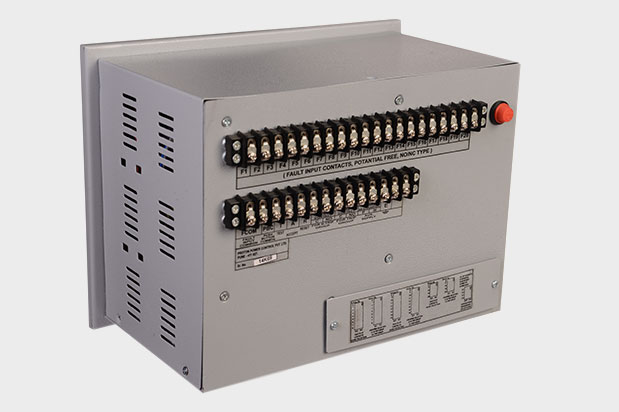

  • Terminals: Suitable for 0.2 to 2.5 sq. Mm. Cable.
  • Scan time: Less than 10 ms.
  • Response Time: Less than 10 ms.
  • Flash Rate: 60 Flash per min Fast Flashing 30 flash per min slow flashing

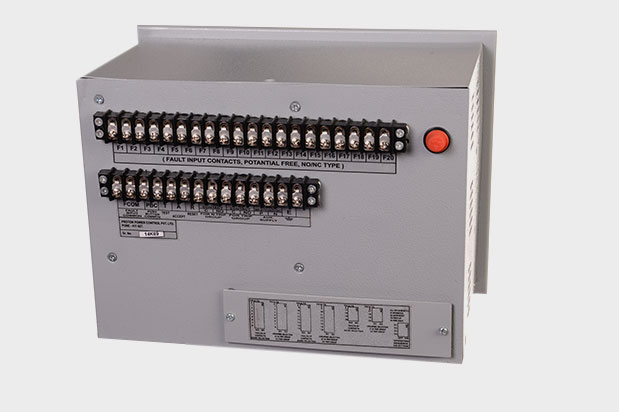

  • Fault Input Contacts: Potential free contact needed. (LIVE Input Fault Contact can be Optional ).
  • Output Connection: Remote TEST, SILENT, ACCEPT,RESET.
  • Output Relay Contacts: 2 No`s potential free, Non trip group & trip group. (Annunciator fail Optional.)

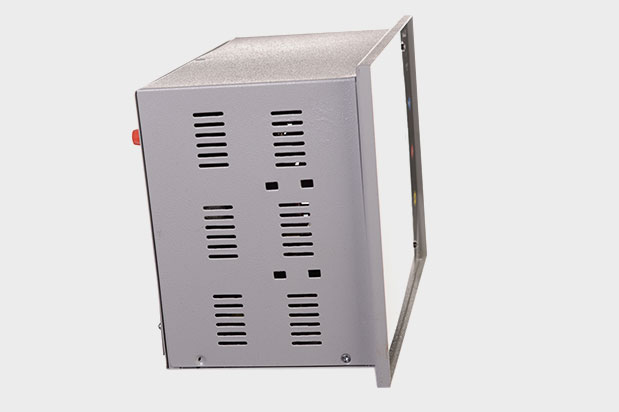

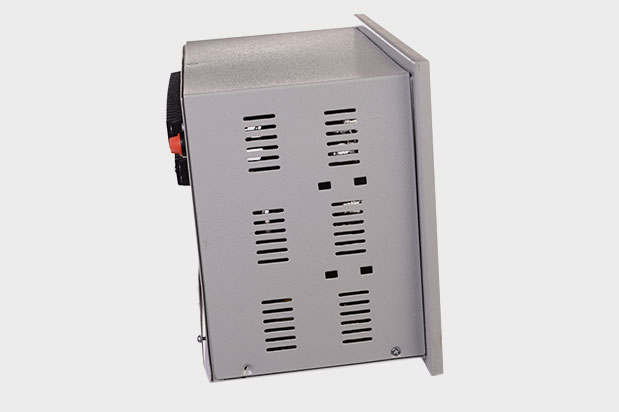

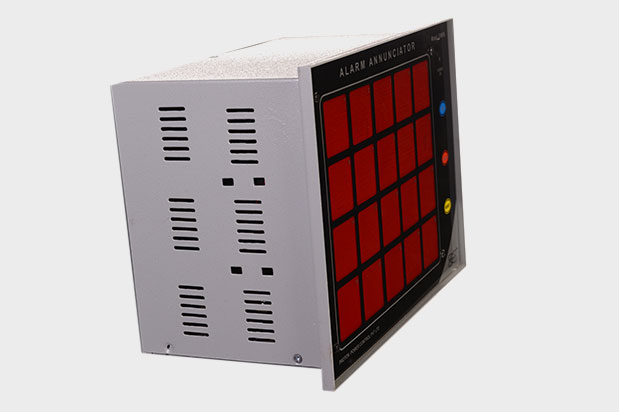

  • Enclosure: M.S. Enclosure with high strength.
  • Output Contact Rating: 7 amps at 230 VAC Resistive.
  • Noise Immunity: 2KV as per IEC 61000-4-12
  • Impulse Tests: 5KV as per IEC 60255 -5.
  • Environmental Tests: As per IS 9000.
  • Max. Ambient Temp: 0-60 Deg C.
  • Humidity: 95% R.H.
  • Window Colour: Red, Yellow, Green, Blue, Amber & white.
  • Facia Type: Printed on Photo film replaceable from front(optional)
  • Cutout size: 258(W) x 190(H) mm.
  • Over all Size: 280(W) x 210(H) x 160(D) mm.
  • Based on latest single chip micro-processor technology Sleek, Compact design for reliable and accurate operation.
  • Fast response time.
  • Models available from 4 to 64 windows.
  • Field selectable operational sequences.
  • Incorporates a group of super bright LED's instead of twin filament lamps for unlimited life at very less power consumption.
  • Actuated through potential free fault input contacts.
  • Fault input contacts NO/NC site selectable by means of DIP switches.
  • Opto-isolated all fault inputs, immune to noise disturbances.
  • Provision for external audible (Bell or Hooter) through potential free relay output contact.
  • All models are available with built-in feather touch push buttons for Test, Mute, Accept and Reset operations.
  • Test facility checks flashing, Mute, Accept and Reset operations.
  • Specially designed power supply for high noise immunity, wide input variations and have built-in transient protection.
  • The extensive protection provided to safeguards all I.C.'s and components from failure, thereby providing complete reliability.
  • All cards interconnected with plug-in polarised connectors for easy servicing.
  • ABS FRP enclosure with high strength.
  • Designed to give an economic, 'No Frills' alarm annunciator system that is both easy to install, commission and maintain.
  • Type tested for noise, impulse and functional tests as per various standards.
  • Site selectable facility for grouping of trip and non-trip faults or trip and alarm faults for visual and audio discrimination through two separate output relay contacts.
  • Multi-colored inscription plate for easy differentiation of Trip and Non-Trip fault annunciations.
  • Site selectable facility for grouping of Trip and Non-Trip faults or Trip and Alarm faults for visual and audio discrimination thro'
  • two separate output relay contacts.
  • Extra relay output contact per channel for repeat annunciation.
  • Actuated thro' LIVE fault input contacts. (AC or DC voltage directly can be given.)
  • Provision for Dual (AC & DC) power supply with automatic changeover with A.C. fail or D.C. fail annunciation
  • Computer interface with MODBUS RS-485 RTU protocol.
  • Output connections for remote Test, Silent, Accept and Reset operations
  • Partly POTENTIAL FREE and partly LIVE fault input contacts can be given in one single unit
