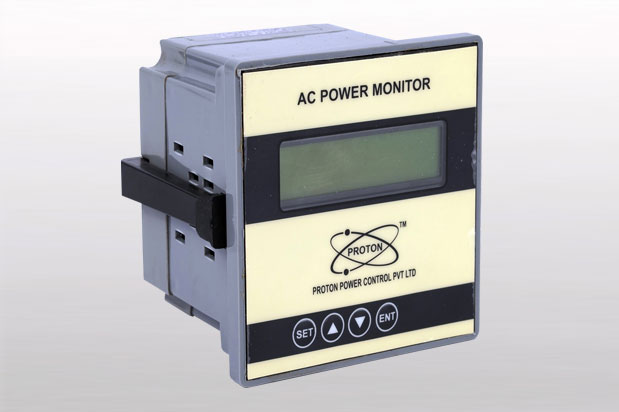

AC Power Monitor-1P MODEL- 1P ACPM
AC Power Monitor-1P MODEL- 1P ACPM

The AC Power Monitor is a solid state Power Meter. Monitoring of single phase AC supply including all types of energies. The AC Power Monitor is based on a dual micro controller , with a high degree of programmability. The Meter has been programmed to operate as an intelligent front end measuring and storing device & serial port connectivity qualifies model AC Power Meter. The Meter’s supplied preprogrammed for operation and can be directly installed. The Meter can be read manually or through a RS-485 MODBUS RTU Protocol.
Measured Parameters:-
1] RMS Voltage (Volt) Phase – Neutral measured.
2] RMS Current (Amps) Phase current.
3] Frequency.
4] Power Factor.
5] Active Power (KVA).



  • Nominal Voltage Input :- 1] Standard Voltage offered Single Phase 230 V AC Power supply
    2] Accuracy Range : 50 – 115 % of nominal voltage.
    3] Burden < 2.5 VA per phase.
    4] Overload 1.2x nominal continuous
  • Nominal Input Current : 5 Amp
    1] Accuracy Range: For 5 Amps = 120 % nominal.
    2] Burden: < 0.5 VA per phase.
    3] Overload: 4.0x nominal continuous
    4] Starting current: 0.2% of nominal current.
  • Terminals :
    1) separate contact for DG.
    2) Separate communication terminal.
  • Frequency : 50 Hz / 60 Hz range (±5 Hz).
  • Measured Parameters :
    1] RMS Voltage (Volt) Phase – Neutral measured.
    2] RMS Current (Amps) Phase current.
    3] Frequency.
    4] Power Factor.
    5] Active Power (KVA).
    6] Apparent Power (KW).
    7] Main’s KWH.
    8] DG KWH.
    9] DG Run hour.
    10] Mains Run hour.
  • Auxiliary Power : No External power is required (Draws power from the voltage signal
  • Accuracy :
    1] Volt: 0.25% ± 1 dgts.
    2] Current : 0.25% ± 1 dgts.
    3] Frequency: 0.1% Hz ± 1 dgts.
    4] Power Factor: 0.25% ± 1 dgts. (For 0.5 Lag – 1.0 - 0.8 Lead)
    5] Active Power: 0.5% rdg ± 1 dgts.
    6] Apparent Power: 0.25% rdg ± 1 dgts.
    7] Active Energy: Class 1.0
  • Communication Output :
    1] Serial port : RS 485
    2] Baud rate : Configurable 1200, 2400, 4800, 9600, 19200. (Default: 9600)
    3] Unit No : Configurable 1-32 (Default 17)
    4] Start bit : 1
    5] Stop bit : 1
    6] Protocol : MODBUS - RTU
  • Environmental :
    1] Working Temp : 0 to 55º C
    2] Storage Temp : 10 to 70º C
    3] Relative humidity : 0 – 95 % non-condensive
    4] Warm up time : 30 Sec
  • Enclosure :
    1] Mounting : Panel mounting.
    2] Position : Panel.
    3] Enclosure : 96 X 96 X 110 mm.
    4] Terminal : Screw ON Terminals.
  • Key :
    SET : This key is used to change the controller from RUN mode to FUNCTION mode for parameter setting
    ENTER: To save the new parameter value
    INC : Up scroll the parameter & parameter value.
    DEC : Down scroll the parameter & parameter value.
  • Note :To Load default parameter Press INC key On power ON.
  • CT Ratio/Gain Configurable.
  • All Menus are Password Protected.
  • Different Passwords for each menu set points.
  • 16 x 2 Line LCD display with Bakelite on controller front panel.
  • Simple 4 Key keypad for on site programming.
  • Automatic display of AC Voltages, Current parameters one by one in Run Mode.
  • Separate contact for DG.
  • Direct display of Line voltage & actual current drawn by Load.
  • Run hours for Total Main KWH, Total DG KWH.
  • D.G. sensing.
  • Communication with PC given, separate contact for communication TX & RX.
  • The AC Power Monitor is a solid state Power Meter.
  • Monitoring of single phase AC supply including all types of energies. The AC Power Monitor is based on Microchip, with a high degree of programmability.
  • The Meter has been programmed to operate as an intelligent front end measuring and storing device & serial port connectivity qualifies model AC Power Meter.
  • The Meter’s supplied preprogrammed for operation and can be directly installed. The Meter can be read manually or through a RS-485 MODBUS RTU Protocol.(Optional)
  • MODBUS RS-485 RTU protocol connectivity.
  • GSM Communication to know working status of unit Runflow and fault if any.
  • Customised sprm can be offerd.
