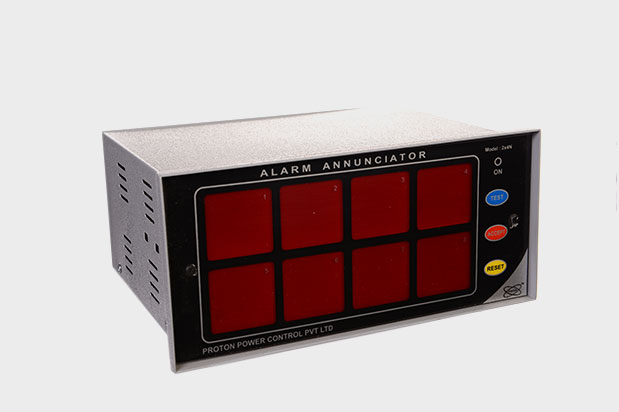

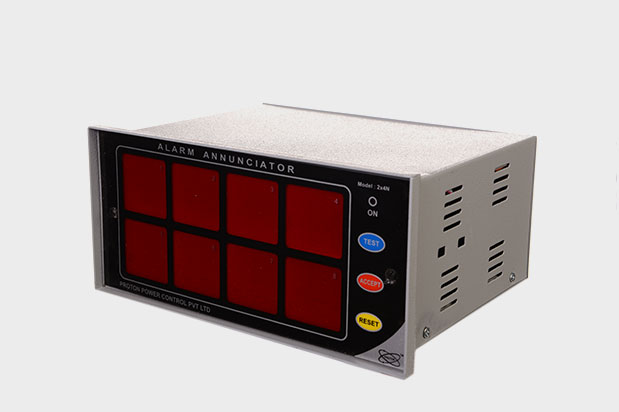

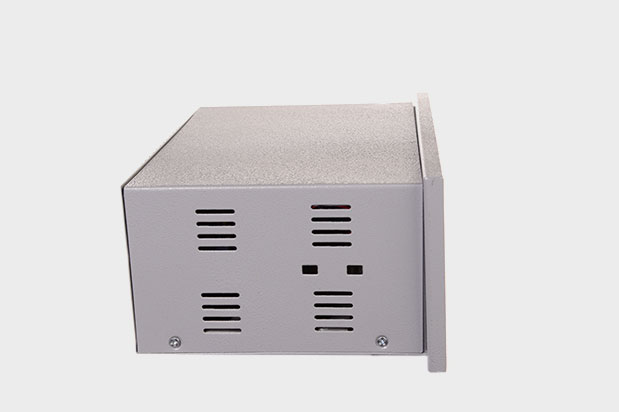

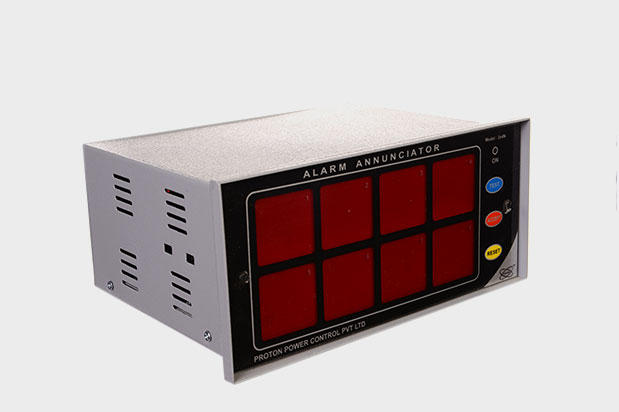

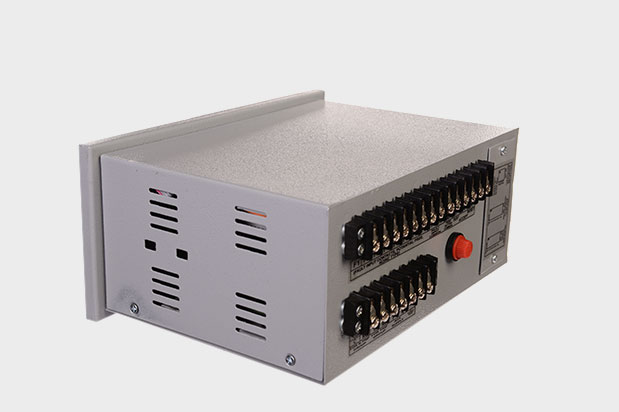

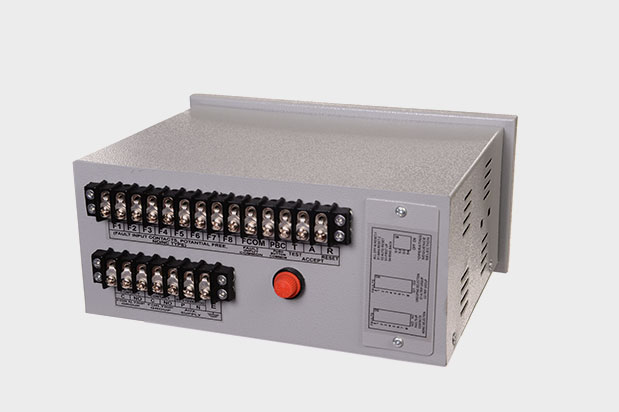

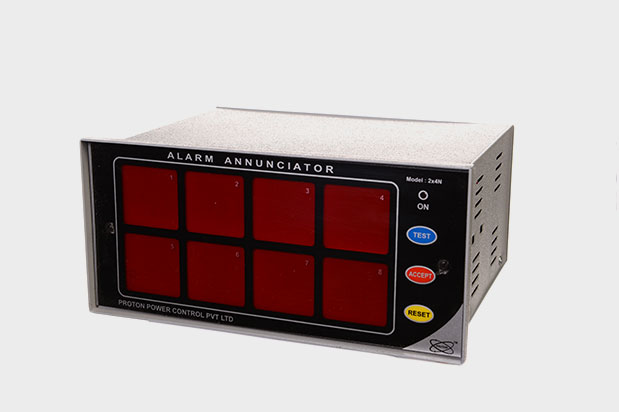

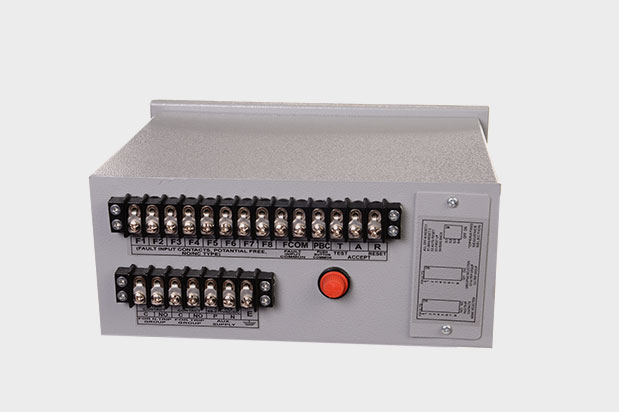

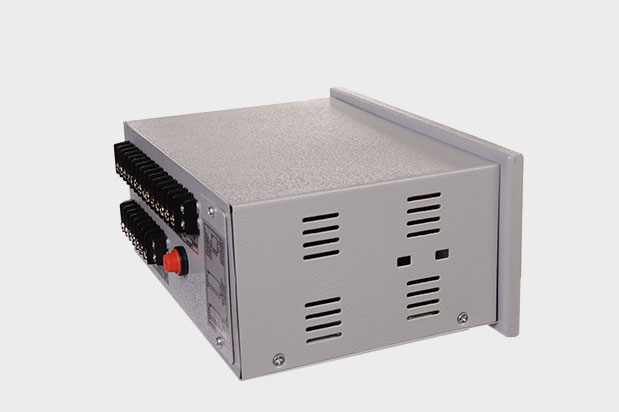

8 Window Alarm Annunciator MODEL: 2 X 4N

6 Window Alarm Annunciators With Metal Enclosure And Hooter, Annunciator Panels With Metal Enclosure, Manufacturer, Supplier, Exporter, Proton Power Control, Pune, Maharashtra, India

8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
8 Window Alarm Annunciator
  • Supply Voltage :
    1) 90-270 AC/DC SMPS OR
    2) 20V/60V DC Optional
    3) Dual power supply 110V DC and 230V AC
    4) Dual power supply 24V DC and 230V AC
  • Operation Sequence: Multiple sequence option with site selection facility.
  • Push Button Controls: On board Test, Silence(optional),Accept, Reset buttons.

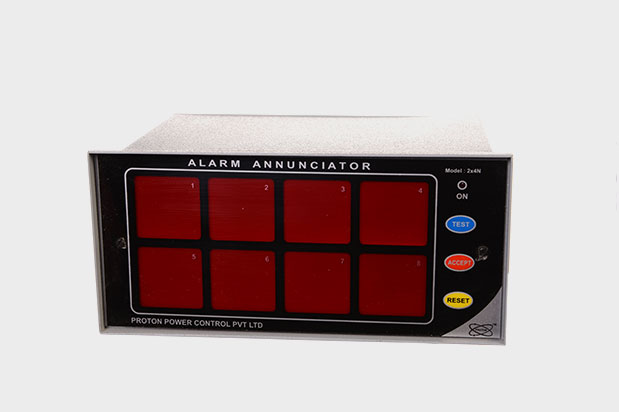

  • No. of windows: 8 Window (2R x 4C).
  • Window size: 40 x 40 mm.
  • No of LED`s per Window: Super bright 4 LED`s in Parallel.
  • Power Consumption: 0.8 VA per window.

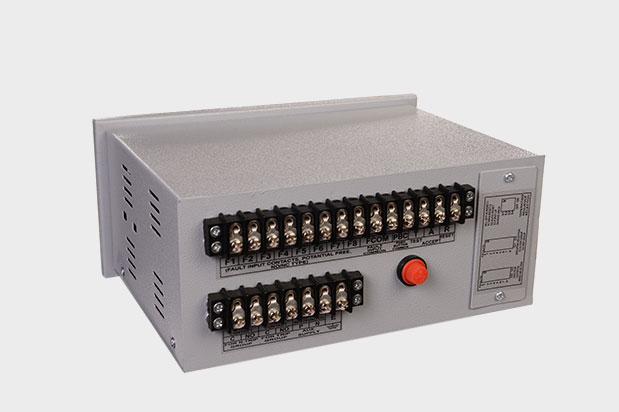

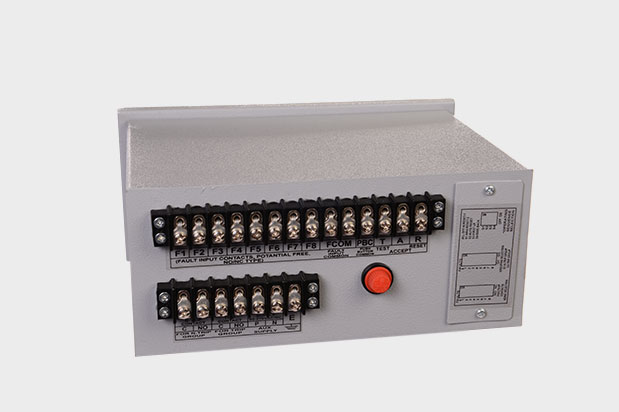

  • Terminals: Suitable for 0.2 to 2.5 sq. Mm. Cable.
  • Scan time: Less than 10 ms.
  • Response Time: Less than 10 ms.
  • Flash Rate: 60 Flash per min Fast Flashing 30 flash per min—slow flashing
  • Fault Input Contacts: Potential free contact needed. (LIVE Input Fault Contact can be Optional ).
  • Output Connection: Remote TEST, SILENT, ACCEPT,RESET.
  • Output Relay Contacts: 2 No`s potential free, Non trip group & trip group. (Annunciator fail Optional.)

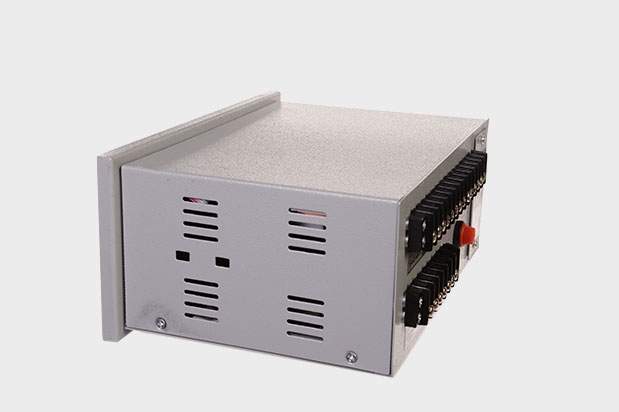

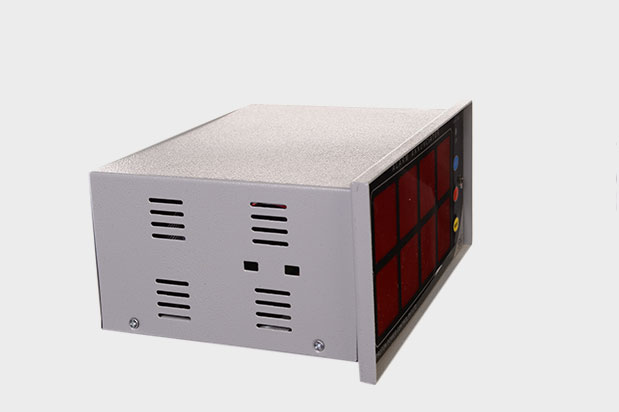

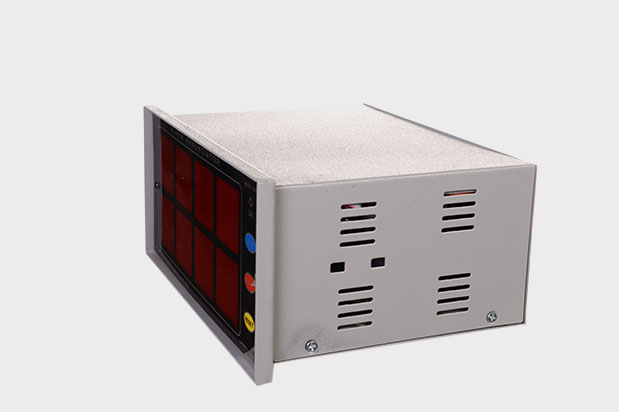

  • Enclosure: M.S. Enclosure with high strength.
  • Output Contact Rating: 7 amps at 230 VAC Resistive.
  • Noise Immunity: 2KV as per IEC 61000-4-12.
  • Impulse Tests: 5KV as per IEC 60255 -5
  • Environmental Tests: As per IS 9000.
  • Max. Ambient Temp: 0-60 Deg C.
  • Humidity: 95% R.H.
  • Window Colour: Red, Yellow, Green, Blue, Amber & white.
  • Facia Type: Printed on Photo film replaceable from front(optional)
  • Cutout size: 212(W) x 92(H) mm.
  • Over all Size: 220(W) x 102(H) x 160(D) mm.
  • Based on latest single chip micro-processor technology Sleek, Compact design for reliable and accurate operation.
  • Fast response time.
  • Models available from 4 to 64 windows.
  • Field selectable operational sequences.
  • Incorporates a group of super bright LED's instead of twin filament lamps for unlimited life at very less power consumption.
  • Actuated through potential free fault input contacts.
  • Fault input contacts NO/NC site selectable by means of DIP switches.
  • Opto-isolated all fault inputs, immune to noise disturbances.
  • Provision for external audible (Bell or Hooter) through potential free relay output contact.
  • All models are available with built-in feather touch push buttons for Test, Mute, Accept and Reset operations.
  • Test facility checks flashing, Mute, Accept and Reset operations.
  • Specially designed power supply for high noise immunity, wide input variations and have built-in transient protection.
  • The extensive protection provided to safeguards all I.C.'s and components from failure, thereby providing complete reliability.
  • All cards interconnected with plug-in polarised connectors for easy servicing.
  • ABS FRP enclosure with high strength.
  • Designed to give an economic, 'No Frills' alarm annunciator system that is both easy to install, commission and maintain.
  • Type tested for noise, impulse and functional tests as per various standards.
  • Site selectable facility for grouping of trip and non-trip faults or trip and alarm faults for visual and audio discrimination through two separate output relay contacts.
  • Multi colored inscription plate for easy differentiation of trip and non-trip fault annunciations.
  • Extra relay output contact per channel for repeat annunciation.
  • LIVE fault input contacts. (AC or DC)
  • Provision for dual (AC & DC) power supply with automatic changeover with AC fail or DC fail.
  • Communication port with MODBUS RS-485 RTU protocol.
  • In Unmanned mode - faults will not be displayed ON window & will be stored in memory.
  • In Manned mode- Whatever faults occurred in unmanned mode will be displayed.
  • Power fail memory retention - At the time of power fail starts of all windows will be saved in memory. When power is resumed all faults will be displayed.
